SCPI on Instrument Level

The eLABin1 contains 5 to 30 instrument depending on the configuration bought, a communication subsystem for each instrument is implemented following the rules for creating SCPI commands. Below an example of a typical tree structure for an instrument is shown.

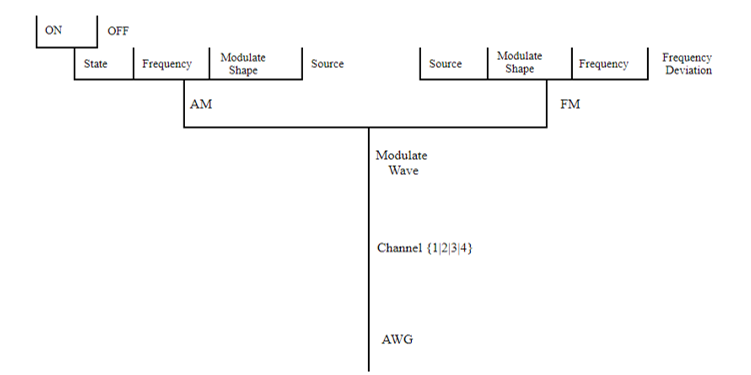

Figure 1. Command tree for an eLAB subsystem
commandtree

Through the commands of the eLAB subsystem, all devices can communicate with each other by using the SCPI command.
